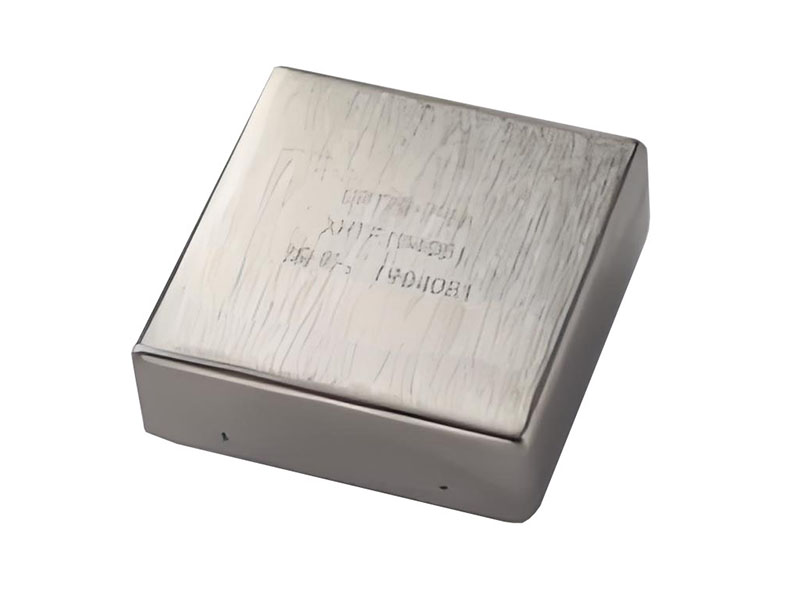

Features
Be suitable for high vibration application;
5V single power supply, low consumption;
UART serial communication port;
Compatible with SA.33 pins;
1PPS input synchronization and PPS output;
TOD output.
Main Specifications
Output frequency | 10MHz |
Output electric level | HCMOS electric level |
Frequency accuracy | 5E-11 |
Short term stability | 1.0E-10/1S3.0E-11/10S1.0-11/100S |
Phase Noise (SSB) | @10Hz | -90dBc/Hz |
@100Hz | -120dBc/Hz |
@1KHz | -140dBc/Hz |
@10KHz | -145dBc/Hz |
Frequency drifting | ≤2.5E-11/day |
Steady state consumption (normal temperature, 25℃) |
≤3W @+5V |
Maximum power consumption | ≤10W @+5V |
Frequency Adjustment range | ±2E-8 |
Adjustment accuracy (digital) | Better than 1E-12 |
1PPS input synchronization function | 1PPS SYNC accuracy is better than ±50ns |
1PPS input disciplined accuracy | ≤1E-12 (average value of 24 hours after one day discipline) |
Holding performance | ≤1μs (holding time difference of 24hours after one day discipline) |
Operating temperature | -40℃~+70℃ |
Temperature accuracy | ≤5E-10 |
Storage temperature | -55℃~+100℃ |
MTBF | 100,000 hours |
External size | 50.8*50.8*17.8 (mm3) |
Weight | ≤100g |

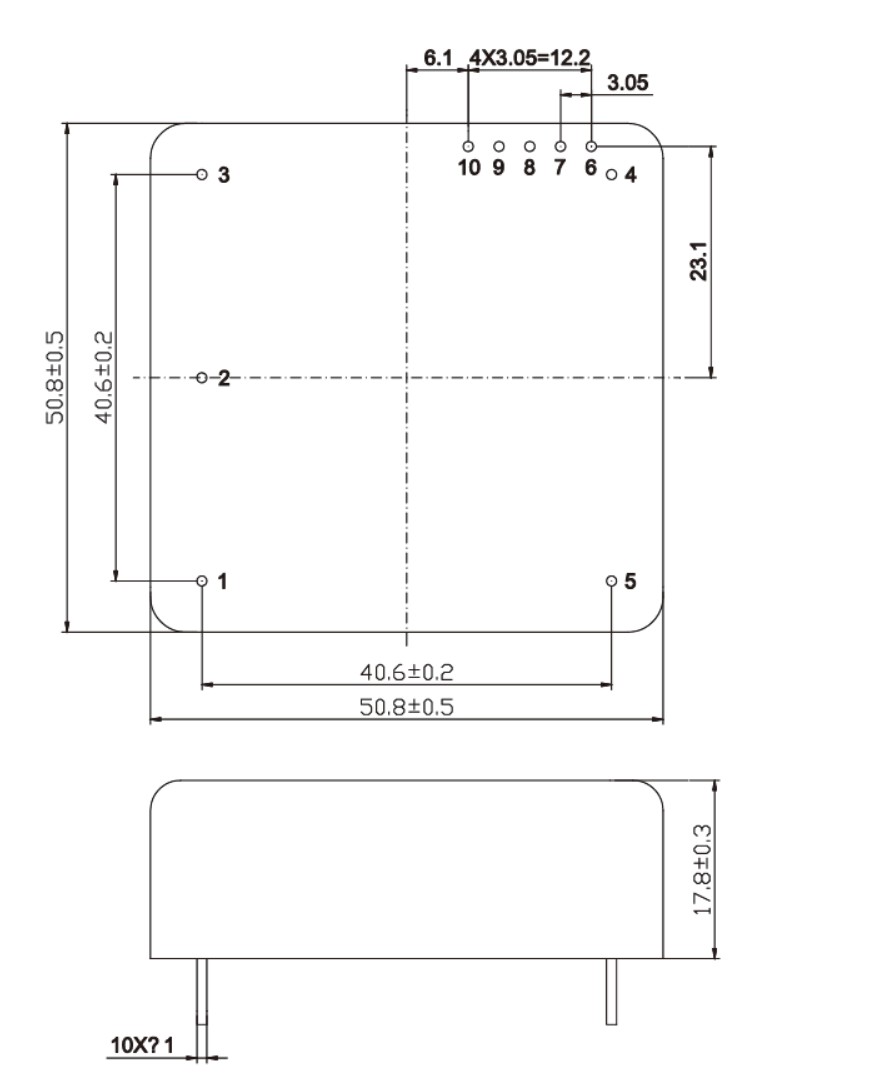

External Configuration
Pins No. | Feature name | Pins No. | Feature name |
1 | 1PPS input | 6 | TXD |
2 | Shell | 7 | RXD |
3 | 10MHz output | 8 | Lock Indication |
4 | GND (Signal&Power) | 9 | 1PPS output |
5 | +5V | 10 | NC |
Pins Connection
