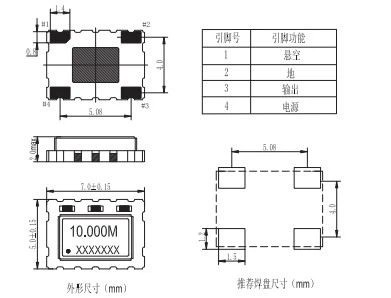

External size

7.0*5.0*2.0mm3

Weight

0.25g (Max.)

Rated frequency

10MHz

Other frequency

8.192, 10, 12.8, 16.384, 18.432, 19.2, 20, 25, 32.512, 40

Temperature range

Operating temp.: -55℃ ~+85℃

Storage temp.: -55℃ ~ +125℃

Power voltage

+3.3V±5%

Operating current

≤20mA

Output wave

Square

Electric level

CMOS/ TTL

Duty cycle

50%±5%

Initial accuracy

≤±1.0ppm, @25℃ at shipment

Temperature stability

≤±0.5ppm, -55℃ ~+85℃

Phase noise

≤-140dBc/Hz @1KHz

Aging

≤±1.0 ppm/year

Allowed deviation from frequency voltage

≤±0.2ppm (@VDD±5%)

Allowed deviation from frequency loading

≤±0.2ppm (@loading±5%)

Q/TD20299-2015
